Digital Torque Wrenches

MODULAR TRANSDUCER

For the larger 75-750 ft-lb wrenches, reduce shipping costs and downtime by sending just the interchangeable transducer for calibration.
ONBOARD FEATURES
  • Virtual progress bar and buzzer for torque signaling
  • Data capture highlights all areas of over and under torque
  • Device accuracy of +/- 1% of actual value
  • Compare applied torque to configurable parameters
  • Torque counter can forewarn operator when calibration deadline is approaching
  • Languages; English, Chinese, French, German, Polish, Portuguese, Russian, Spanish
  • Units: cNm, Nm, ozins, in-lb, ft-lb, kgfcm, kgfm

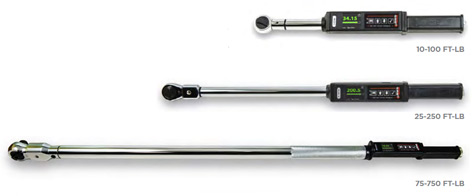

RANGES AVAILABLE
TORQUE RANGE ADAPTOR SIZE RATCHET SIZE LENGTH WEIGHT
10-100 ft-lb 9 mm x 12 mm 3/8" 410 mm 1.87 lb
25-250 ft-lb 14 mm x 18 mm 1/2" 625 mm 2.87 lb
75-750 ft-lb 24 mm x 32 mm 3/4" or 1" 1360 mm 13.23 lb

75-750 FT-LB ATTACHMENTS
MODEL NO. RATCHET SIZE
HRH34 3/4 "
HRH01 1"

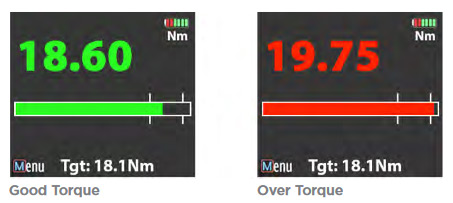

FULL COLOR OLED DISPLAY


WRENCH OPTION 1

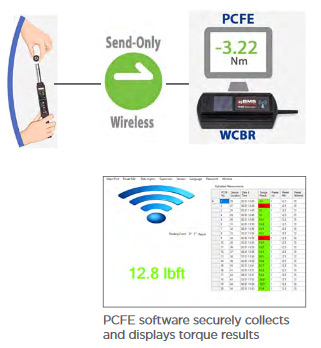

ONE-WAY WIRELESS SERIES (ZIGBEE)
  • Connect up to 8 wrenches with one WCBR
  • Wireless software interface integrated into PCFE software which is supplied as standard with every tool
  • Data is securely stored on wrench to prevent data loss when out of range or working off-site
  • Results can be analyzed using PCFE software with outputs such as standard deviation and Cpc
FULL WRENCH TRANSDUCER RECEIVER
TORQUE RANGE MODEL NO. MODEL NO. MODEL NO.
10-100 ft-lb HW100W - WCBR
25-250 ft-lb HW250W - WCBR
75-750 ft-lb HW750W HWT750 WCBR


WRENCH OPTION 2

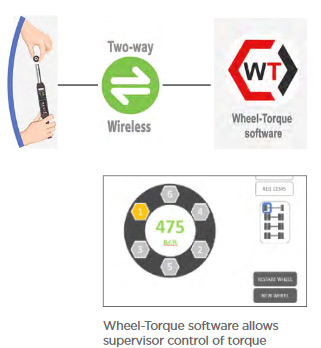

TWO-WAY WIRELESS SERIES (BLUETOOTH) WITH WHEEL-TORQUE SOFTWARE
  • Associate sequences of torque results to a job, part, or vehicle
  • Interface guides operator through a job sequence
  • Supervisor alerted when used outside of parameters
  • View reports for job or vehicle
  • Save and export data
FULL WRENCH TRANSDUCER
TORQUE RANGE MODEL NO. MODEL NO.
10-100 ft-lb HW100BT -
25-250 ft-lb HW250BT -
75-750 ft-lb HW750BT HWT750
