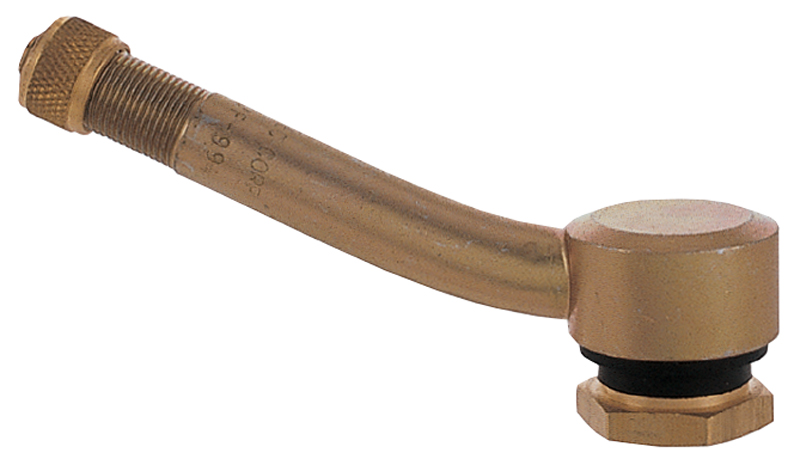

Large Bore Air Water Valve

SPECIAL HYDROFLATING VALVES
Designed for faster filling of tires with liquid. Does not contain valve core. Straight-through 5/16" opening is sealed with special O-ring cap No. A-151. Used on loader tire in conjunction with similar Large Bore Air Valve. Used in conjunction with WH-330-J-694 Large Bore valve.

HALTEC NO.	TR NO.	BEND ANGLE	"L" HORIZ. LENGTH		CAP
			INCHES	MM
WH-JF-994	JF-994	28 ̊	3 1/2	88.9	A-151
